Integracja rozwiązań dla instalacji telekomunikacyjnych i operatorów kablowych

PREMU TT-9/xx multiswitches

PREMU TT-9/xx

PREMU TT-9/xx Multiswitches is a brand new generation of cascade and end multiswitches, designed by TELKOM-TELMOR engineers and produced in Poland. PREMU TT-9/xx family enables creating multistage multiswitch cascades. Works perfectly in large-scale RTV/SAT installations and collective installations, where it is necessary to distribute signal to multiple subscribers

PREMU TT-9xx enables to IF signal distribution to 8, 16, 24 and 32 outputs. In addition to IF signal, RTV signal is also distributed.

One of the greatest advantage of PREMU family is very large isolation between satellite outputs (35dB). High crosstalk is very helpful in large multiswitch installations. In case of low isolation, in combination with the short distance from distribution point, abnormal crosstalk signals may be received that are above the sensitivity threshold of the receiver. The advantage of new multiswitches is also ability to switch between active and passive DVB-T modes and low attenuation in SAT path, which is a crucial parameter to ensure appropriate signal level in extended installations.

Thanks to the highest quality components, used in PREMU TT family Multiswitches, they are covered by a 3-year warranty.

Extended multiswitch systems requires high connection reliability. Special construction of connectors used in PREMU TT multiswitches ensures save and durable link even if connected multiple times with different internal conductor thickness cables. In addition, the sockets are equipped with a spring that signals the proper connection with a distinctive click.



Product features:

  • output characteristic like a dream (built in cable pre-correction),
  • very large isolation between paths (35 dB)!
  • Polish construction and production,
  • signal reception from two satellites eg. ASTRA and HotBird,
  • very low attenuation in SAT path,
  • perfect connection with network - thanks to connectors equipped with springs,
  • 3-year warranty,
  • built-in improved cable characteristics pre-correction,
  • terrestrial band switch

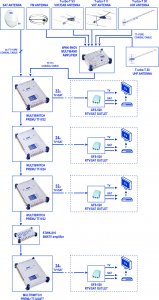

Application example

























See our movie about PREMU multiswitches:
